To finish the front of the motor I needed to find a way to tension the belt due to the fact I wont have an AC compressor.
To start I went to NAPA to get an Idler and a belt. I wanted to mount the tensioner high up since my engine often sits below the frame rail.

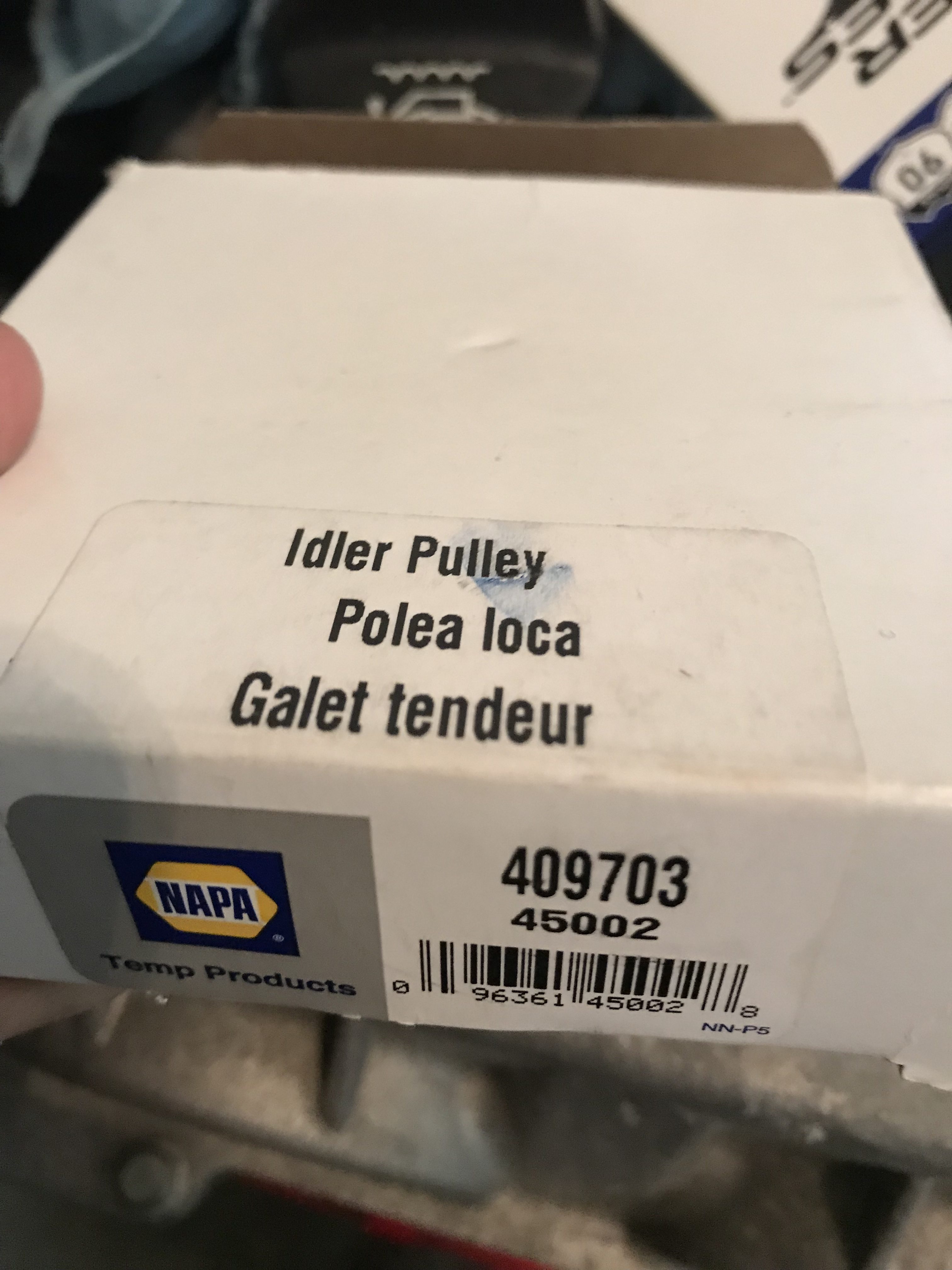

Pulley came from NAPA. It is grooved and part number 409703
This wasn’t the first belt I bought. I think the factory part was 1940mm. I went to 1740mm to get a good fit.

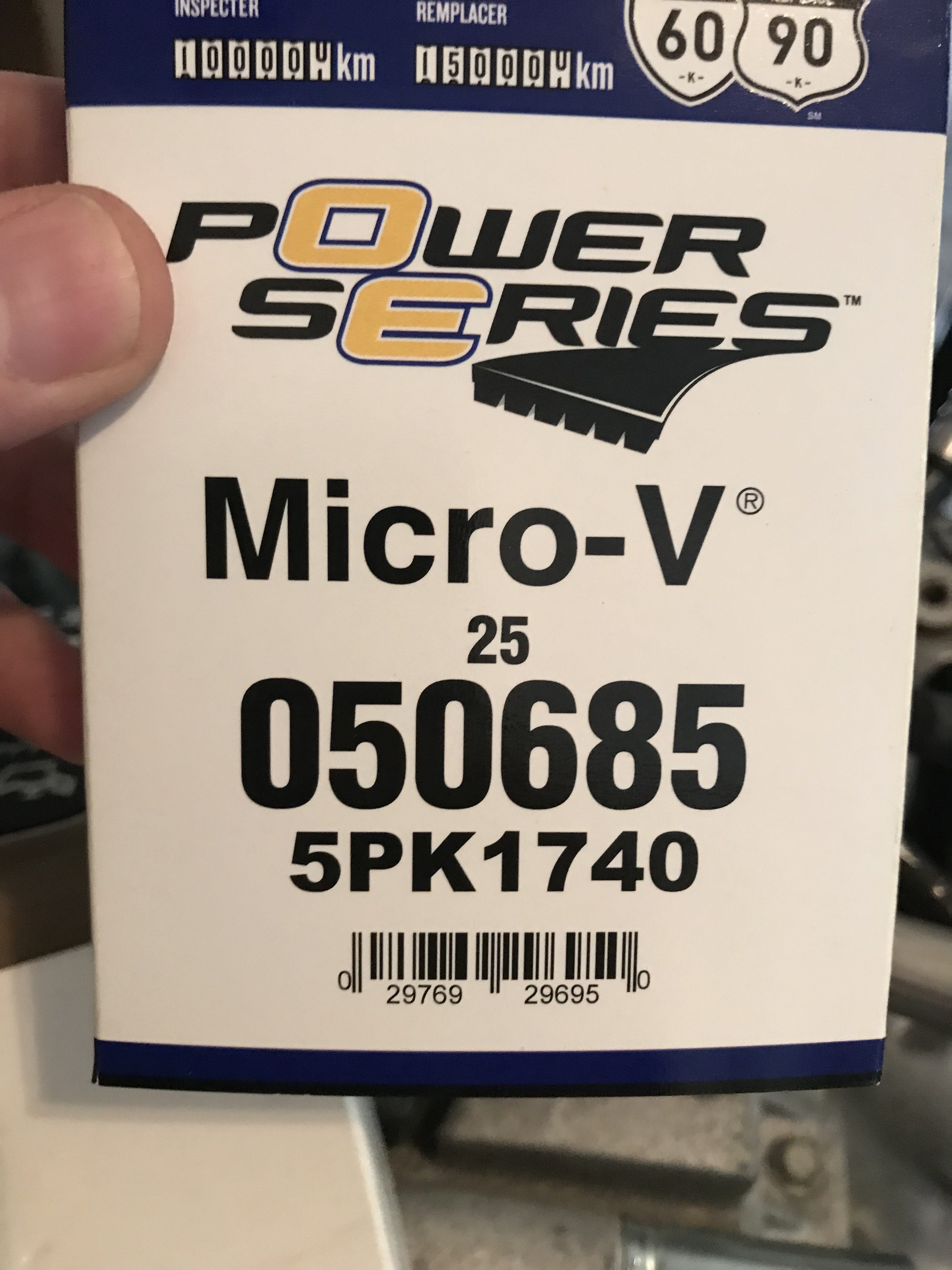

Napa Part number 050685- It is a 5 Rib 1740mm belt.

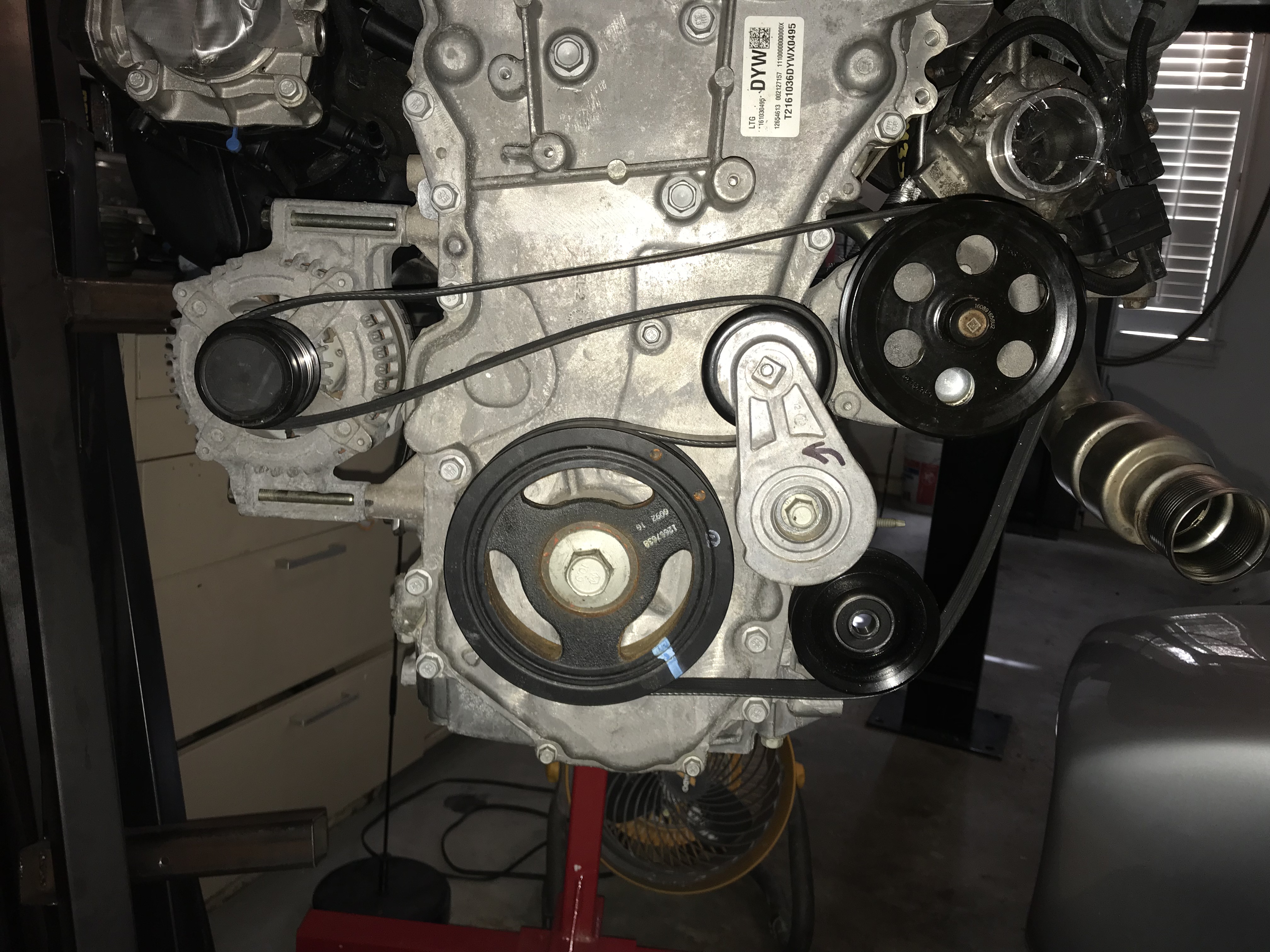

This shows the belt route and the rough placement I was considering. Note my tensioner is smaller than the factory AC Pulley.
Bracket created using the 2 front bolt holes. It is a solid fit so I didnt feel like I needed to move further back and triangulate. Note the location is higher than an AC.

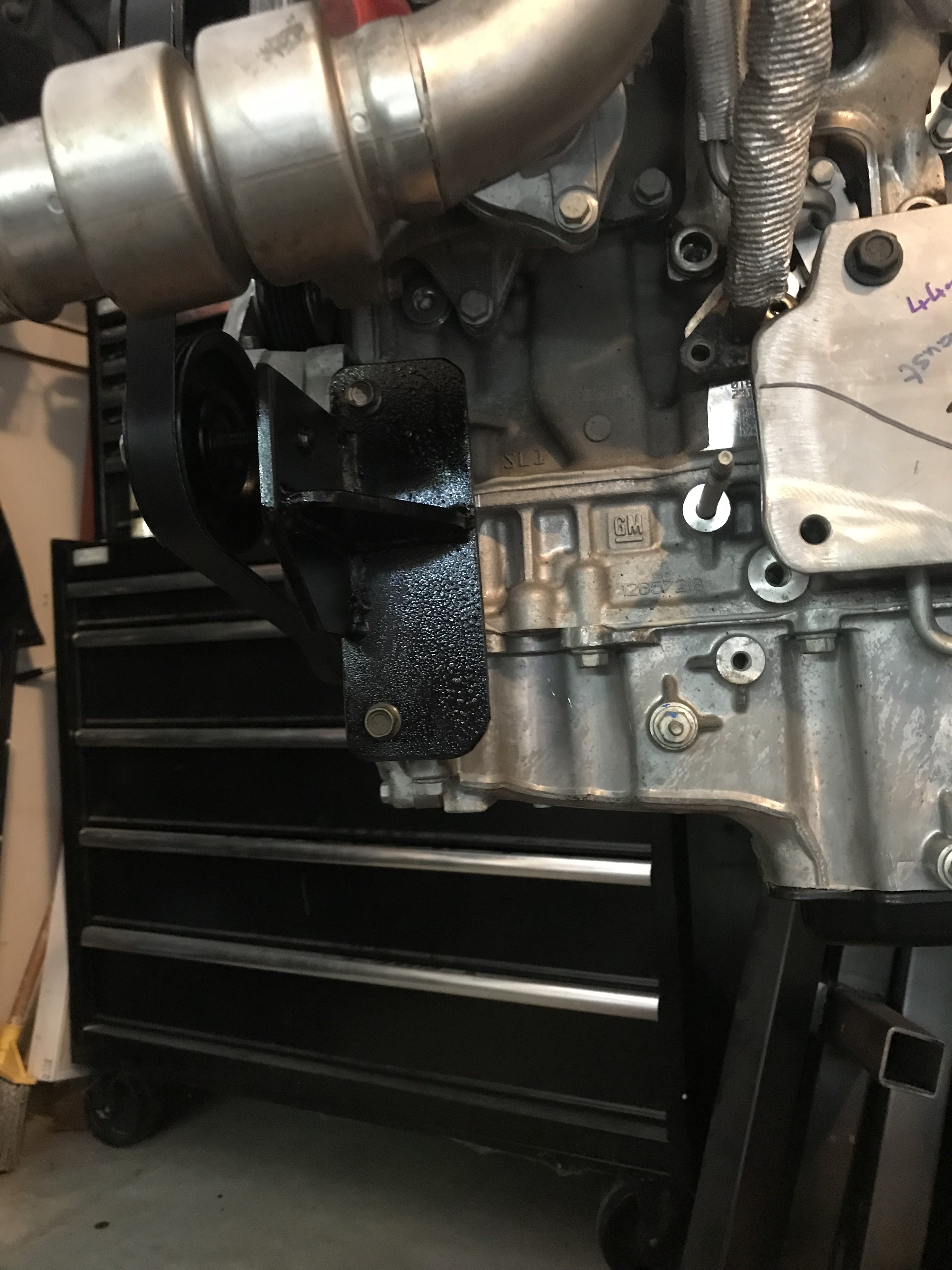

This is the side view. It was essentially 2 pieces at right angles with a brace to stop deflection.

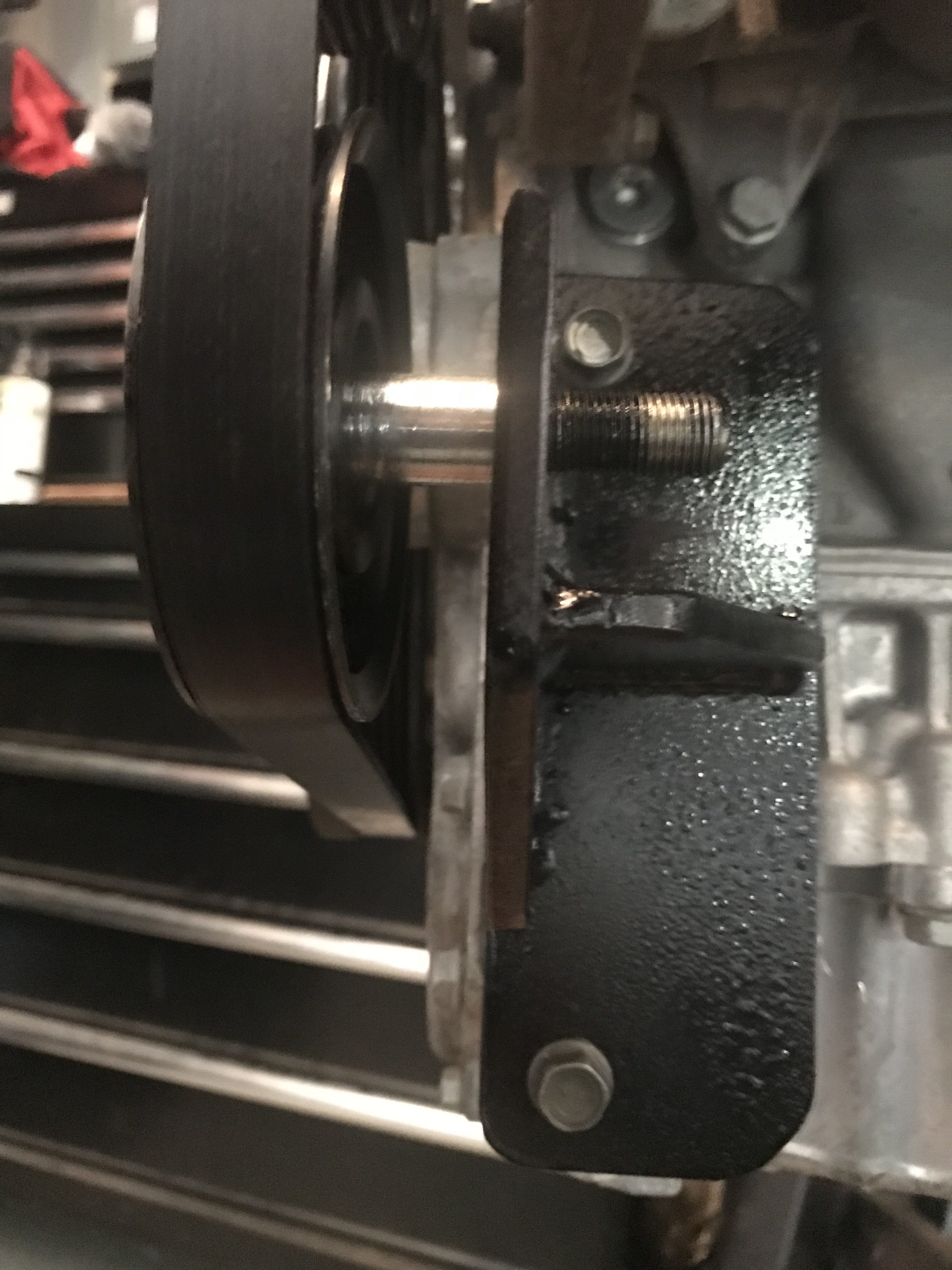

This is a close up view of the bracket. I painted it while hot so the paint bubbled. I like the look.

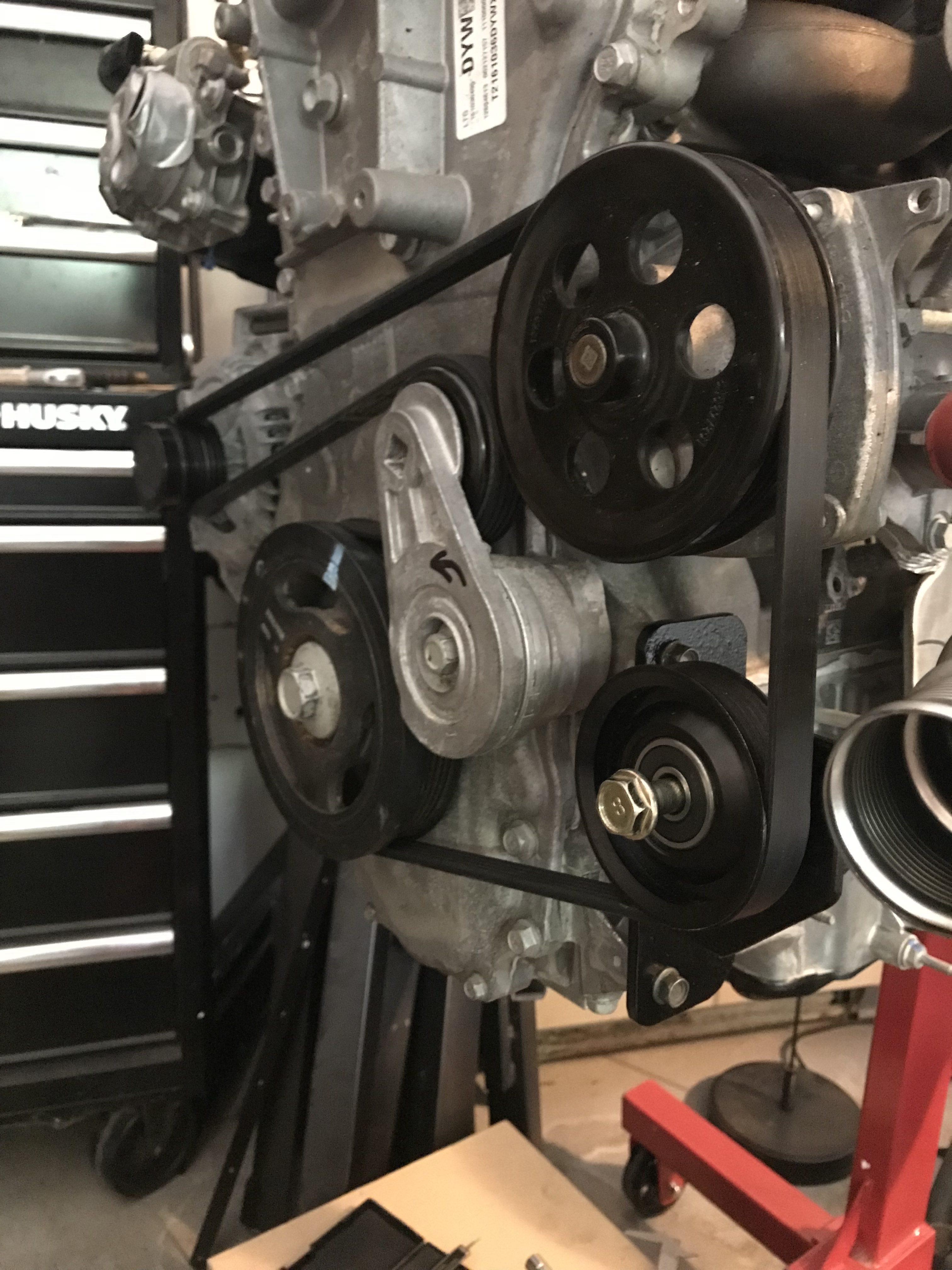

The end result is fairly good. I am happy and things appear to be tracking well and cleanly. I might add a nut to the back of the bolt. Right now I have tapped the steel plate (3/8″ thick) so I think it is good enough.
