Out with the old… in with the new..

The work to remove the motor and transmission was fairly straight forward

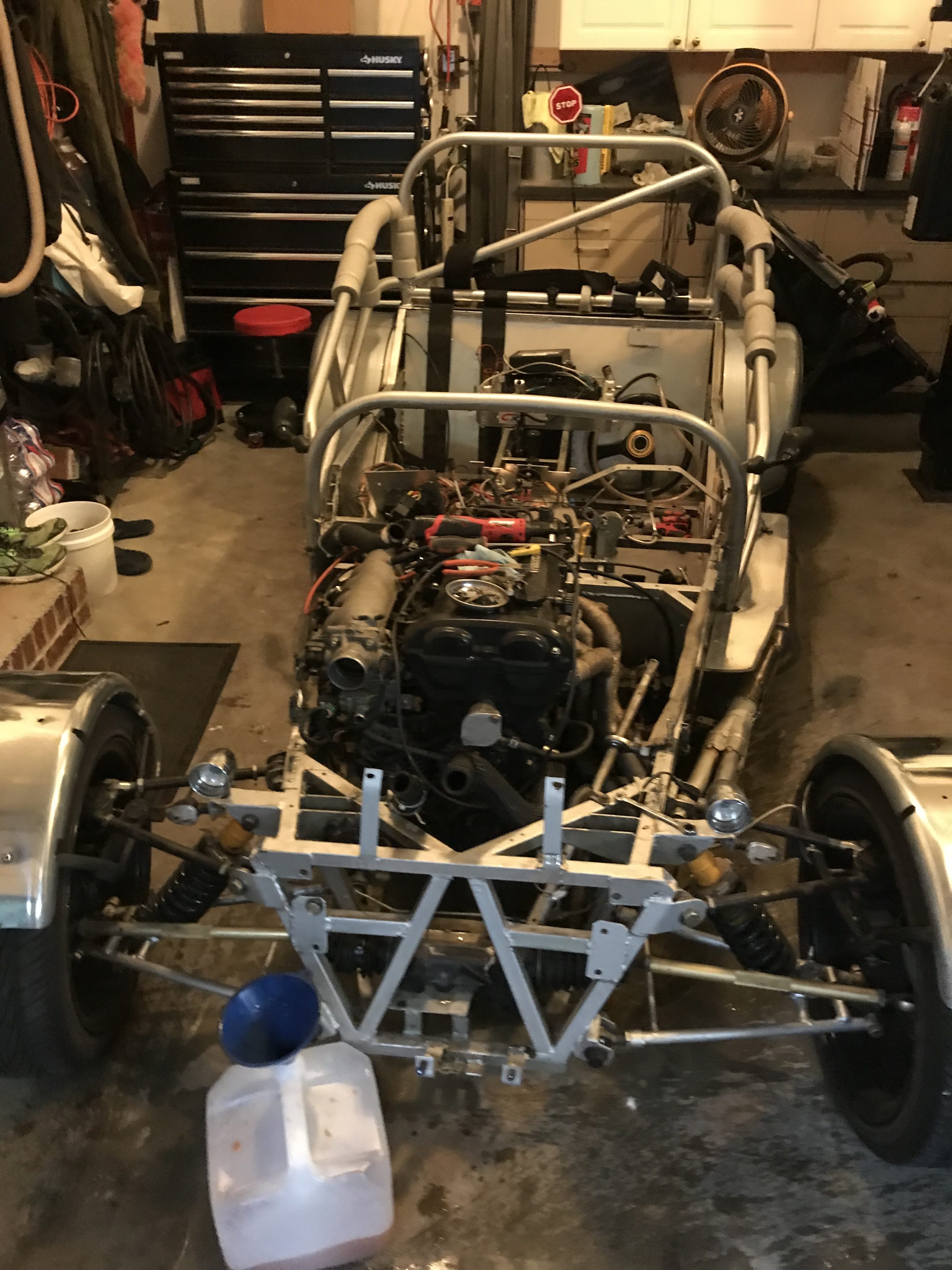

I removed the body panels on the front,the scuttle, nose, hood, side panel, dashboard etc and then removed the exhaust exposing the engine.

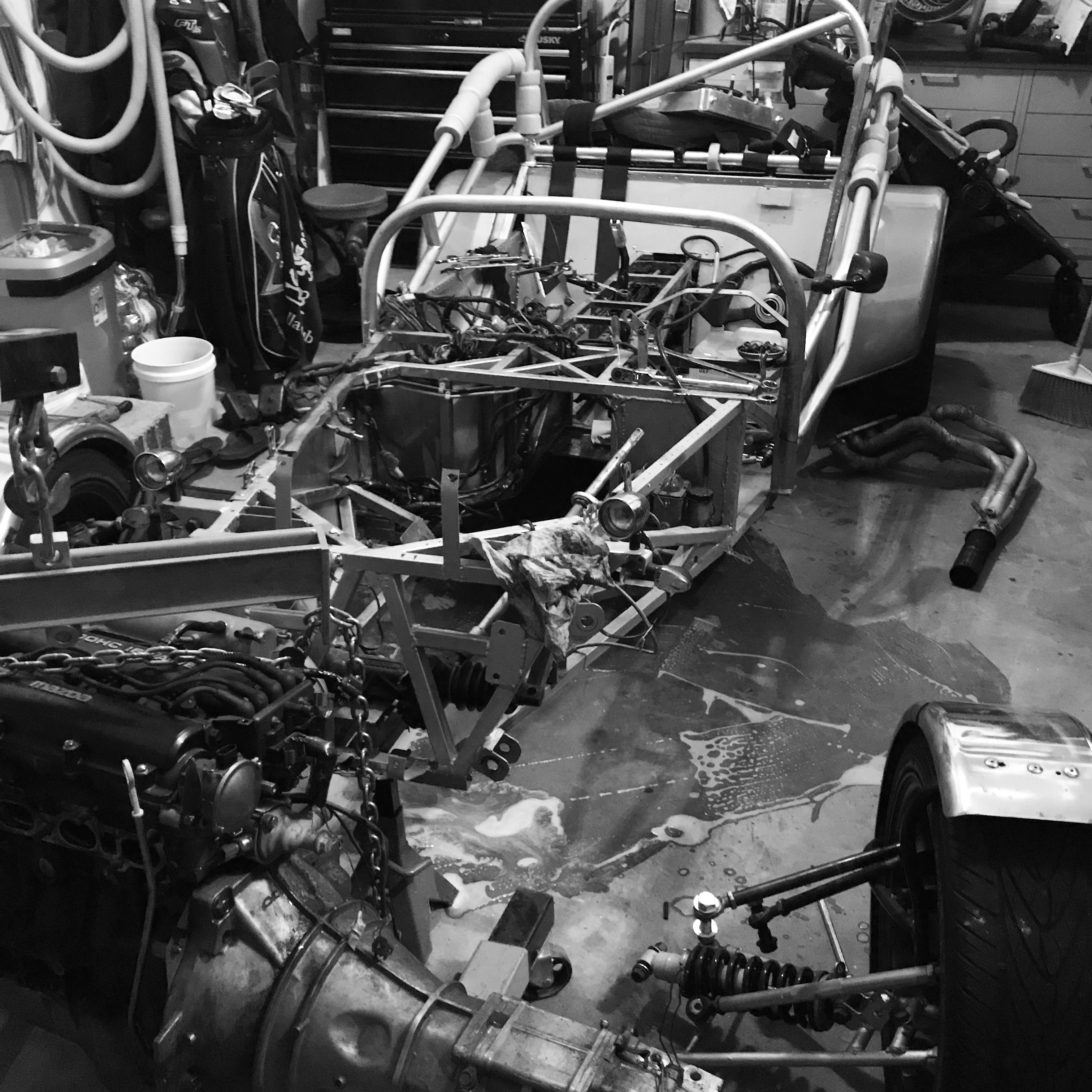

Up next- we pulled the engine (Drain all of the fluids before ever pulling an engine..) and made a big mess.  Shockingly it came out quite easily.

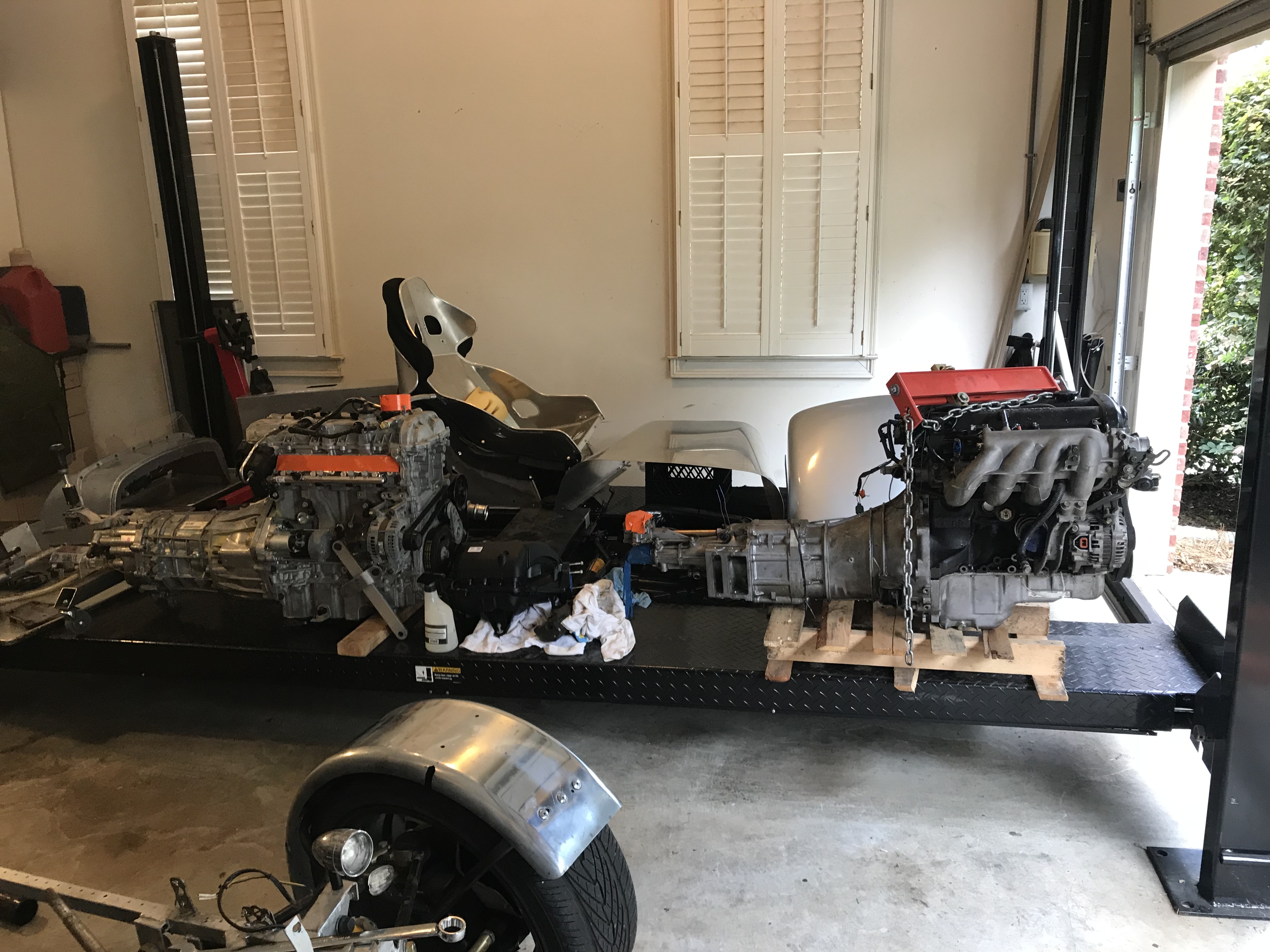

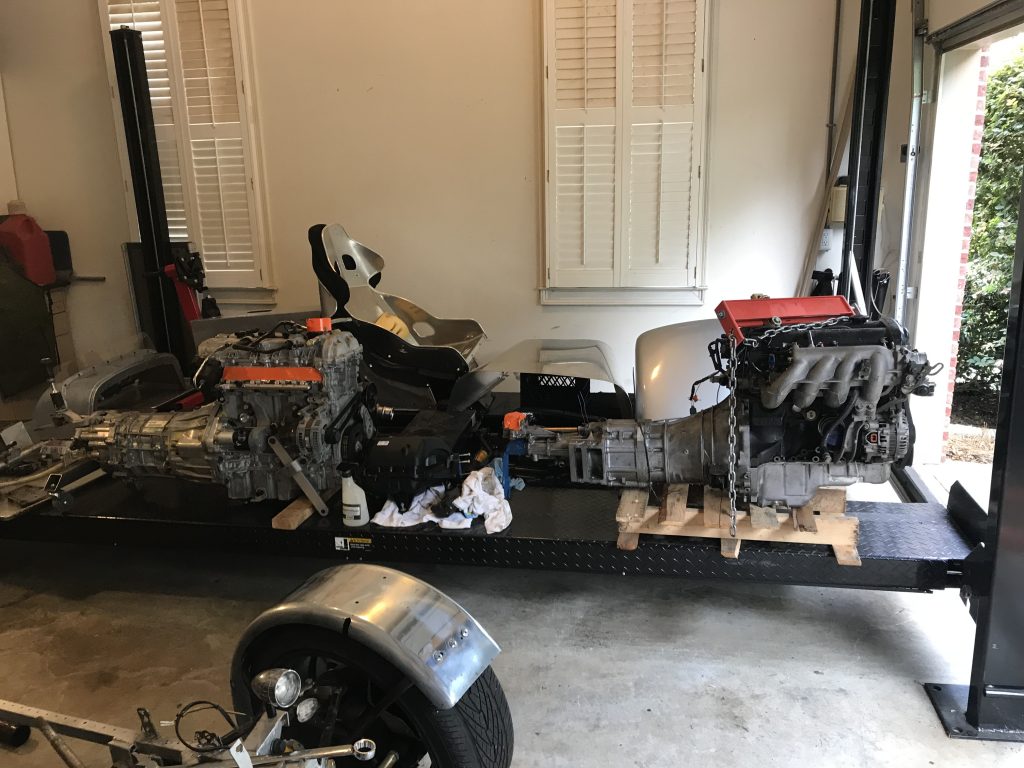

On the left- The ecotec engine.  On the right- The Miata engine. (note the miata engine is on a pallet which lifts the height.  The transmission on the ecotec is about 2″ shorter so the shifting location isn’t idea.

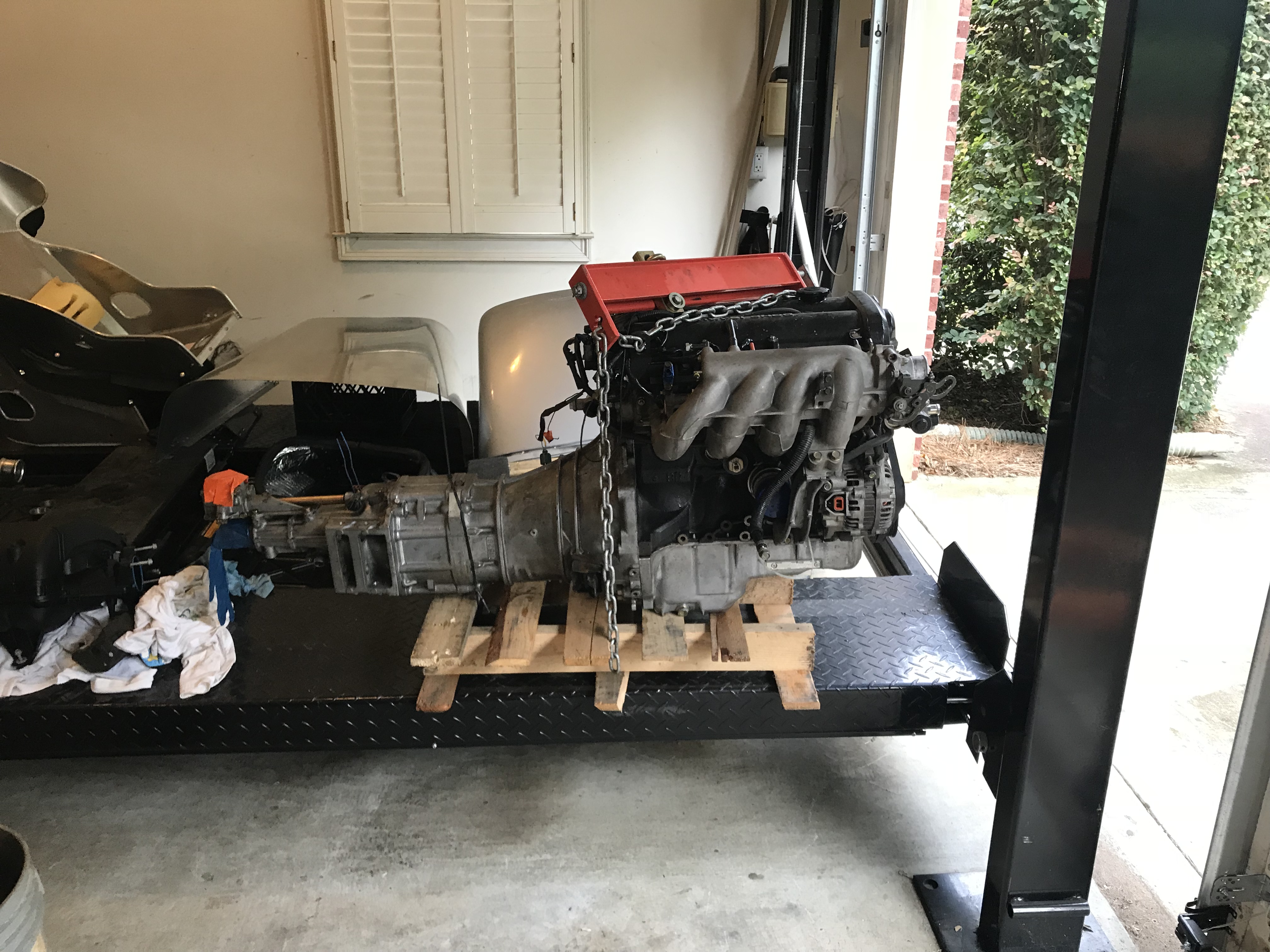

Anyone want a miata engine? I have a deal 🙂  94 Miata with about 80k on it.

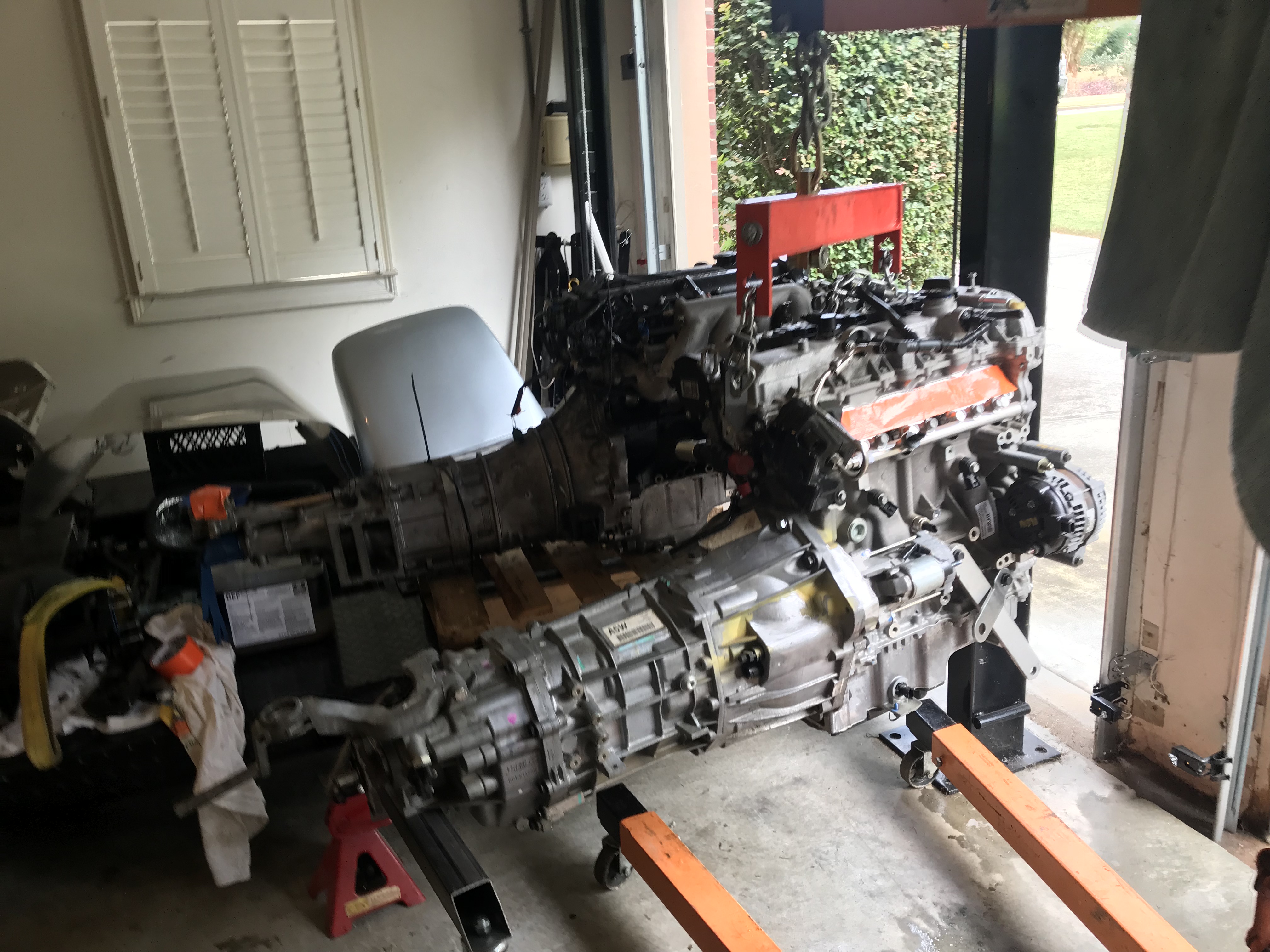

Side by side View. Ecotec in the front.

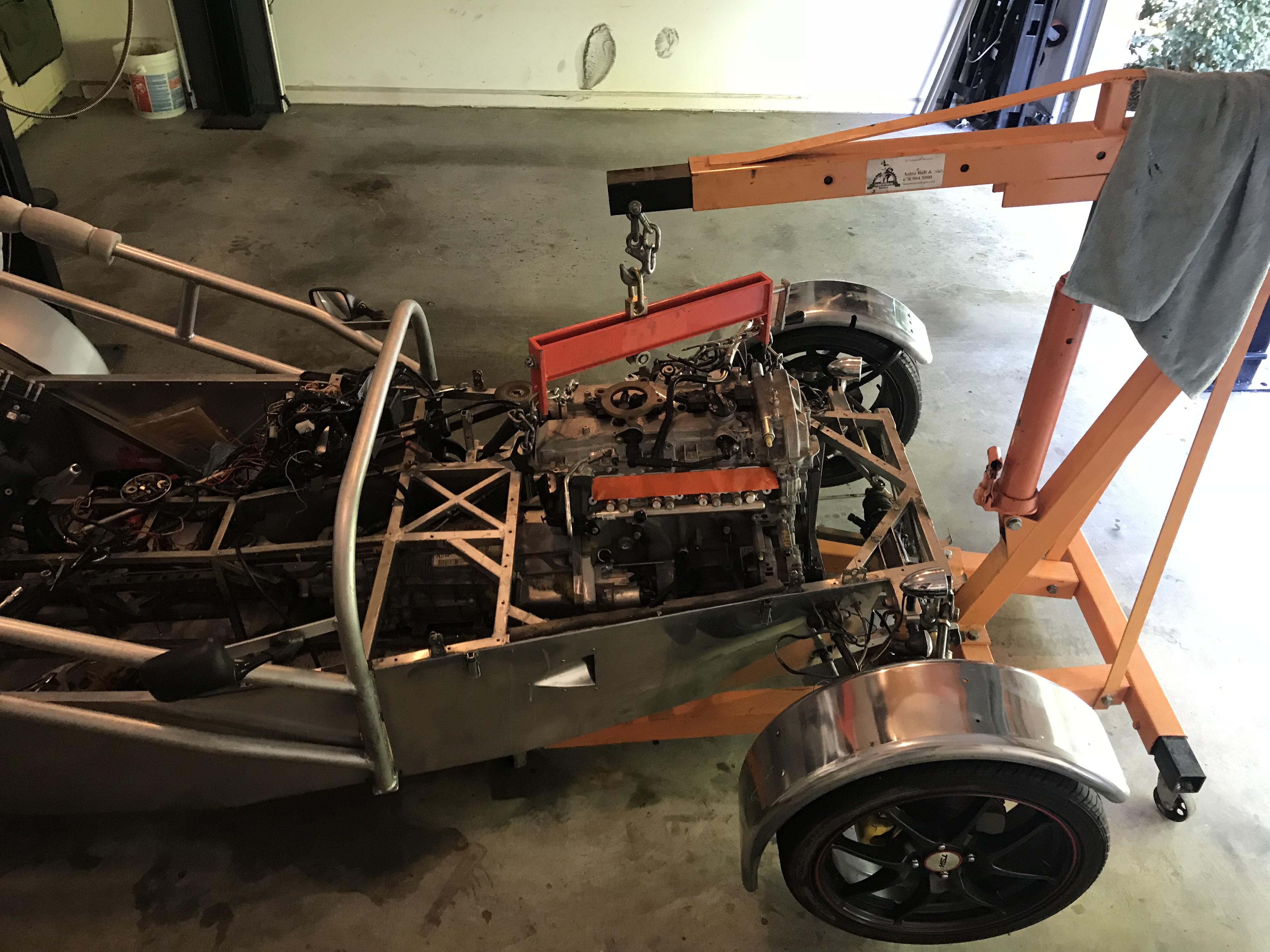

New engine in.. Kinda! I had to cut out some trans tunnel bars. The engine is a bit wider and taller. Taller was expected. Wider not as much. There will need to be some modifications made to get this to work.. The fight isnt over!

Here is a video of the walk around

Posted on

The disassembly begins….

After many months of collecting parts I believe I am finally in a position to start pulling the car apart in preparation for the engine swap.  For those who haven’t seen or heard- I will be removing the Miata Engine and replacing it with a 2.0 GM Ecotec engine (with Turbocharger and direct injection..)



Here is a short video on the overview : https://www.youtube.com/watch?v=IajZ-zl0AzY



I will admit- I had a large amount of anxiety (and still do..) about pulling apart a car that was driving and running quite well. Especially not knowing if this new engine would fit or how many modifications are needed.

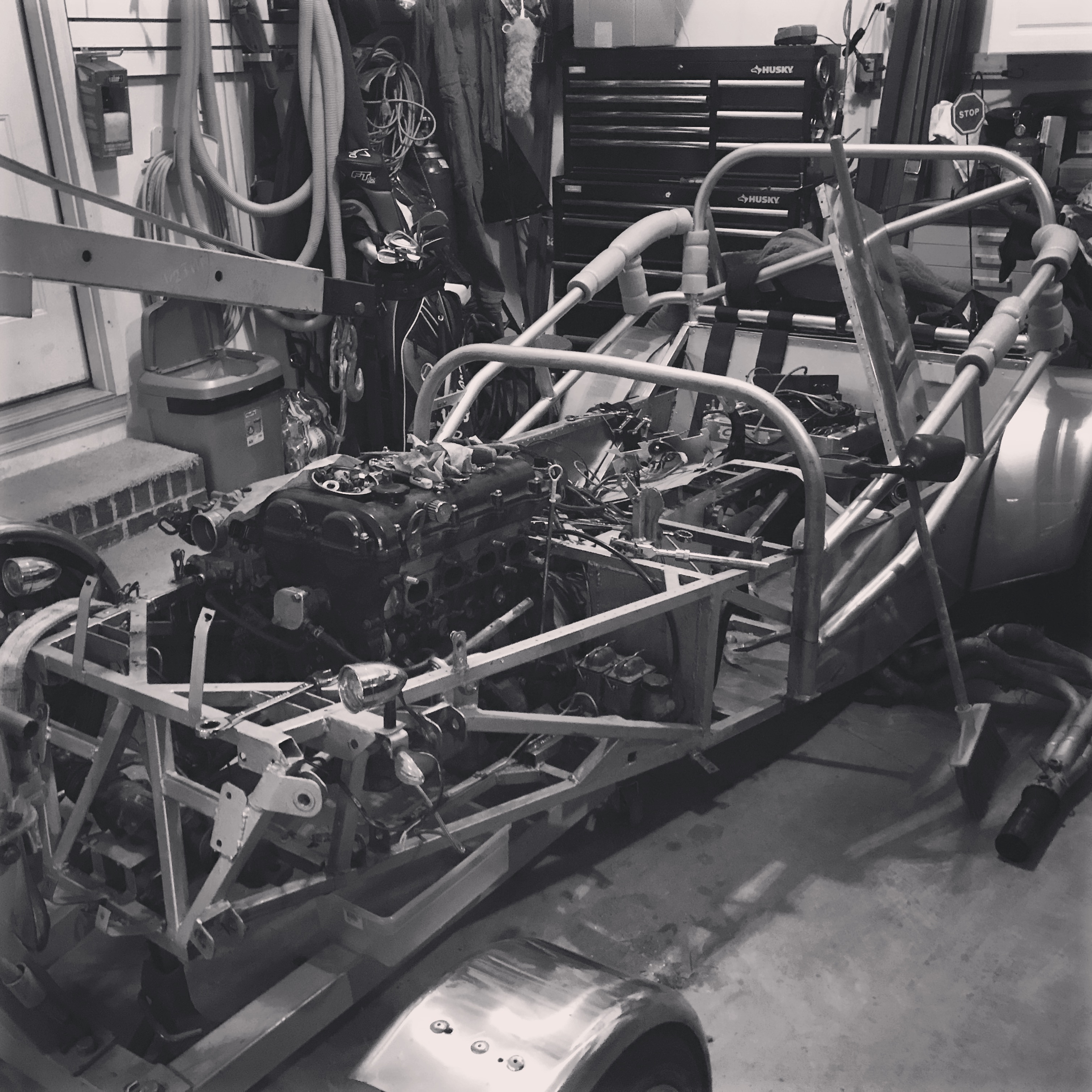

Starting with the seats, then the transmission tunnel, Radiator, scuttle and some sheet metal I started to pull off the covers and find things to remove- There certainly is no shortage.

The radiator was long overdue for a flushing, the seats had crap under them from 2010 and the questions continue. I also made the decision to remove the installed Halon Fire system and replace it with a single hand held unit in future. There are a few pounds I feel we can save!

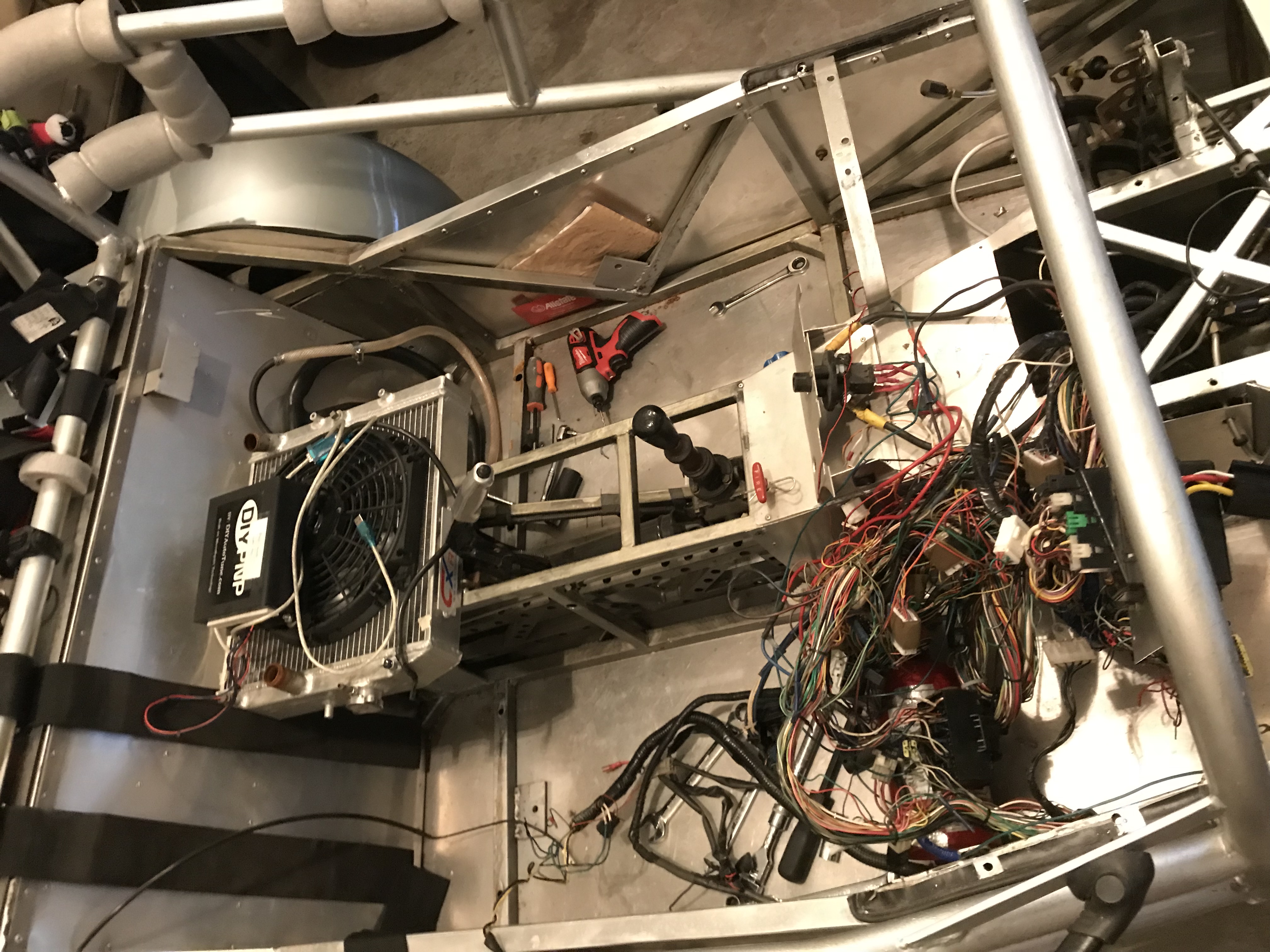

Looking at all the wiring and I certainly think there is a good 40 or 50lbs of wiring that will be coming out of the already trimmed down harness

Mitch from Swap Time recently did a video about the harness. It is set to arrive on Wednesday of this week. Following that I will probably try find an hour or 2 to pull the engine this weekend and see if the new one fits!

Here was a video of the harness he made- https://www.youtube.com/watch?v=1jGzw7sIMFI

I suspect I will need to wire in headlights, tail lights and turn signals as well. The goal there is to keep them all as minimal as possible

Subscribe if you wish to follow along. The YouTube video channel as well as this webpage should both see a few updates in the coming weeks!

Posted on

Last show of 2018

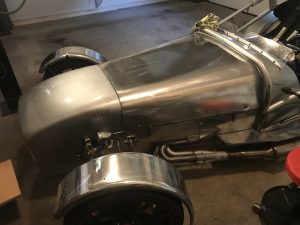

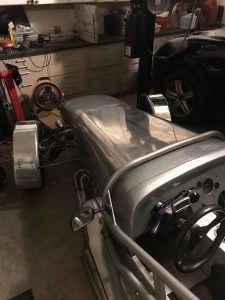

There was a single show in 2018 left on the Calendar and foolishly I thought I would give it the royal treatment. I pulled many pieces off of the car, polished it with high speed buffers and turned my hands and face into a filthy mess.



Unfortunately the idea to wax the sheetmetal afterwards was a mistake. It left streaks and dulled the image. In future I wont be waxing the car… actually I have decided to wrap it after getting its new engine.



Surprisingly the trailer fenders really respond well to being polished. They shined like crazy! Who would have thought that a Galvanized boat trailer fender could look so good?
